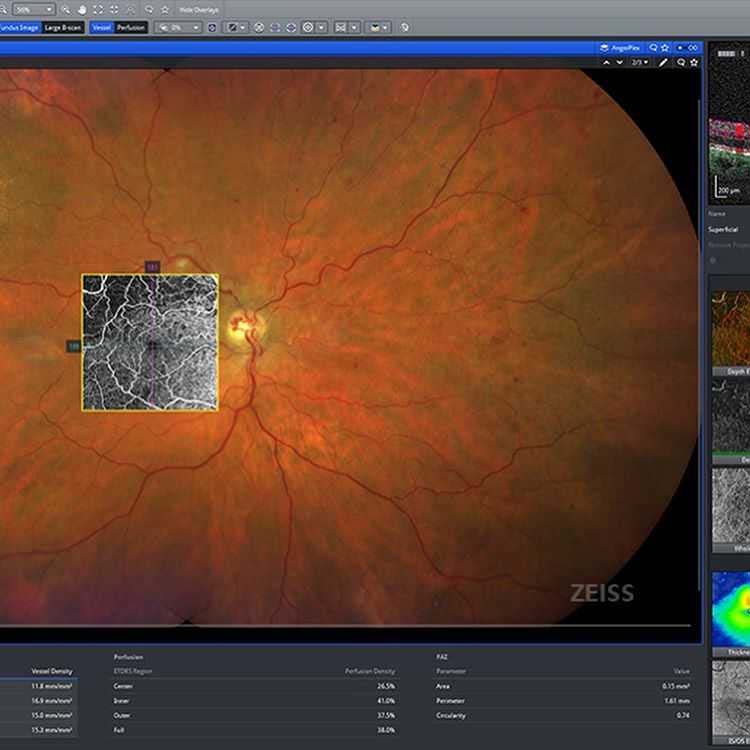

Zeiss Clarus 500 Ultra Imaging System the newest ultra-widefield retinal camera from ZEISS, allows clinicians to use color to their diagnostic advantage. ZEISS CLARUS generates images that closely resemble the coloration of the fundus as seen during clinical examination. Color fundus imaging can aid in the diagnosis and documentation of ocular disease, ensuring confidence when evaluating the optic disc, nevi and lesions where color is important.
Zeiss Clarus 500 Ultra Imaging System How long does it take?
The procedure is very quick, taking only a few seconds per eye. It is very similar to traditional fundus photography whereby you place your chin on a rest, the operator lines the machine up while you look at a green star. A flash of light illuminates the retina and allows the picture to be gathered. You are left with a mild after image similar to a photograph with a regular camera with a flash, which clears within a few seconds.
rue Color:
Aids in diagnosis and documentation
CLARUS 500, the newest ultra-widefield retinal camera from ZEISS, allows clinicians to use color to their diagnostic advantage. It also generates images that closely resemble the coloration of the fundus as seen during clinical examination. Color fundus imaging can aid in the diagnosis and documentation of ocular disease, ensuing confidence when evaluating the optic disc, nevi and lesions where color is important.
Clarity:
From the macula to the periphery with ONE system
Legacy ultra-widefield imaging systems require doctors to maintain a traditional high-resolution fundus camera for optic nerve and macular disease diagnosis and management. CLARUS 500 from ZEISS is the first fundus imaging system to provide true color and clarity within an ultra-wide field of view, enabling clinicians to capture high-resolution fundus images from macula to the far periphery.
Comfort:
For a satisfying patient experience that ensures image integrity
Simple, Stable and intuitive, ZEISS CLARUS 500 is an ultra-widefield retinal camera that has been purposefully designed to optimize each patient’s experience. By bringing the optics to the patient, ZEISS CLARUS 500 helps create a comfortable, satisfying patient experience that provides images free of obstructions, such as lids and lashes, and requires fewer recaptures. A stable and neutral head and chin rest brings the optics to the patient, facilitating an easier and more comfortable scan. The ability to swivel the device between the right and left eye helps technicians capture a high-quality image without realigning the patient.
Zeiss Clarus 500 Ultra Imaging System
Technical Specifications:
Parameters
Imaging Modes:
True Color (with Red, Green and Blue channel separation)
Autofluorescence-Green and Blue
Infrared reflectance
External eye image (ocular surface)
Stereo
Field of view (measured from the center of the eye):
Widefield (one image)- 133˚
Ultra-widefield (two images)- 267°
Montage (up to six images)- 133˚
Resolution: 7.3 µm
Minimum Pupil Diameter: 2.5 mm
Working Distance: 25 mm (patient’s eye to front lens)
Compensation for ametropia: – 24 D to + 20 D continuous
Light sources (LED): Red (585-640 nm), Green (500-585 nm), Blue (435-500 nm), Infrared laser diode (785 nm)
Automatic Operations:
Auto-focus
Auto-gain
Auto Montage: up to 267º Image Montage (up to six images)
Auto-laterality
Instrument Specifications:
Fundus Camera Weight: 53 lbs
Fundus Camera Dimensions (W x D x H): 15” × 22” × 27” inches
Power Table Dimensions (W x D x H): 36” × 25” ×28” – 37” inches
Power Table Weight: 84 lbs
This Zeiss Clarus 500 ultra-widefield fundus camera comes equipped with:
6 Month warranty
Power table
Latest software
Manual
Dust cover
